General Data
Voltage
AC220-240V 50-60Hz
Power Factor
>0.90
Light Source
LED
Operating Temp
0°C to 35°C
Materials
Diffuser: opal
Body: aluminium profile, white finish
MGLEVP

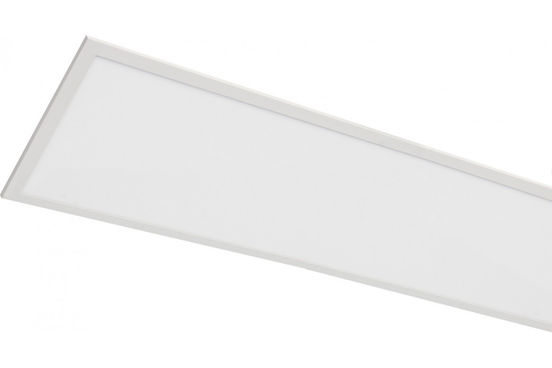

The MGLEVP is a slim recessed LED panel with an opal diffuser suitable for offices and education
Environment
Interior
Fits 15-24mm T-bar ceiling 600x600mm
Installation
Application
For use retail, education and commercial applications.
Efficient
97-102lm/W
Low Glare
UGR <19
Specs
Diagram
Filters:
Lumens
Watts
CCT
Beam Angle
Sort by:
CRI
Part Code | Type Description | W | Lm | CCT(k) | CRI(ra) | Beam | ø | COø | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
MGLEVP LED1X3600 D539 T830 OP | 36 | 3480 | 3000 | 80 | 11 | 1195 | 295 | ||||
MGLEVP LED1X3600 D550 T830 OP | 36 | 3480 | 3000 | 80 | 11 | 595 | 595 | ||||
MGLEVP LED1X3650 G090 T830 OP | 36 | 3600 | 3000 | 80 | 33 | 595 | 595 | ||||
MGLEVP LED1X3650 G091 T830 OP | 36 | 3600 | 3000 | 80 | 33 | 1195 | 295 | ||||
MGLEVP LED1X3650 G091 T840 OP | 36 | 3650 | 4000 | 80 | 33 | 1195 | 295 | ||||
MGLEVP LED1X3650 G090 T840 OP | 36 | 3650 | 4000 | 80 | 33 | 595 | 595 | ||||
MGLEVP LED1X3600 D550 T840 OP | 36 | 3680 | 4000 | 80 | 11 | 595 | 595 | ||||
MGLEVP LED1X3600 D539 T840 OP | 36 | 3680 | 4000 | 80 | 11 | 1195 | 295 |
